IP67 Dynamic Sealed Rugged Touchpad Stainless Steel Vandal Resistant

  • 1
  • 2
  • 3

Brand Name : IKB-MKB

Model Number : K-TEK-B107TP-DWP

Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015

Place of Origin : Shenzhen, China

MOQ : 1pc

Payment Terms : Full payment in advance, Western Union, T/T, Paypal

Supply Ability : 3000psc/month

Delivery Time : ASAP Within 2 weeks upon payment confirmed

Packaging Details : Each keyboard to one box, several boxes to one carton.

Protection level : IP67 dynamic (front panel)

Front Plate : Quality brushed stainless steel

Touchpad thickness : 1.3 mm PCB thickness inclusive of mylar layer

Touchpad lifespan : > 10 Mio times

Interface : PS2 or USB

Tracking speed : Maximum 1,016 m/sec

Contact Now

IP67 Dynamic Sealed Rugged Touchpad Stainless Steel Touchpad

DESCRIPTION:

-IP67 dynamic sealed and stainless steel ruggedized tough touchpad

-With IP65 dynamic sealed stainless steel mouse buttons and top panel mounting.
-One complete silicone rubber alone the top stainless steel plate for easy mounting & sealing tightly with cabinet.

-It is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 107.0mm x 120.0mm (top panel)

TECHNICAL SPECIFICATION:

ITEM SPECIFICATION
Mechanical Front Plate Quality brushed stainless steel
Touchpad thickness 1.3 mm PCB thickness inclusive of mylar layer
Validated touch width 46.50mm (max)
Validated touch length 62.50mm (max)
Mounting Rack top stainless steel plate with mounting screw bolts
Back Metal Cover Rear side integrated electronics protected by a metal cover
Touchpad lifespan > 10 Mio times
Dimensions Touchpad: 65.0mm x 49.0mm; Front Mounting Panel: 107.0mm x 120.0mm (front panel),
Interface PS2 or USB available
Electrical Power supply 5V DC+ 10%,
Work current 4.0 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP67 dynamic (front panel)
Static Release: 15 KV (front panel)
EMC Standard: EN55022(B)
Environmental Operating temperature: -20°C to +60°C
Storage temperature: - 40°C to + 70°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability MTBF >50000H
MTTR < 30min
Touchpad Lifespan >10 million actuations
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.

Mechanical Drawing:

IP67 Dynamic Sealed Rugged Touchpad Stainless Steel Vandal Resistant

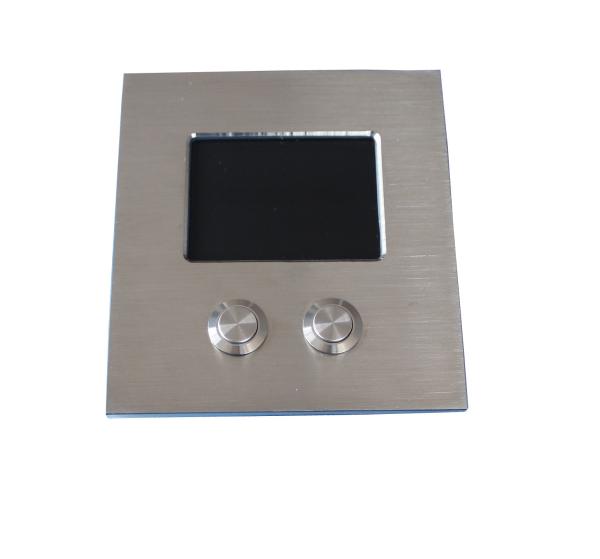

Actual Photos:

IP67 Dynamic Sealed Rugged Touchpad Stainless Steel Vandal Resistant

IP67 Dynamic Sealed Rugged Touchpad Stainless Steel Vandal Resistant
